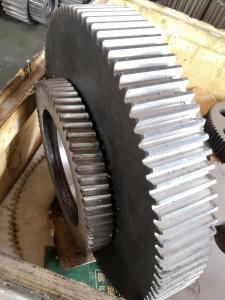

1.5 Module 56 Tooth Metal Spur Gear For Hand Wheel Gear Reducers

Brand Name : YIZGEAR

Model Number : SPG22081101

Place of Origin : CHINA

MOQ : 5 Pieces

Price : $10/Piece

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 1500 Pieces/Month

Delivery Time : 50 Dyas

Packaging Details : Plywood Crate

Material : 20CrMnTi

Module : 1.5

Manufacturing Process : Gear Teeth Grinding

Teeth Number : 56

Profile Type : Spur Gear

Quality Grade : ISO 6-7 Grade

Contact Now

1.5 Module 56T Customized Spur Gears For Hand Wheel Gear Reducers

1) Description of Spur Gear

Spur gears or straight-cut gears are the simplest type of gear. They consist of a cylinder or disk with teeth

projecting radially. Viewing the gear at 90 degrees from the shaft length (side on) the tooth faces are straight

and aligned parallel to the axis of rotation. Looking down the length of the shaft, a tooth's cross section is

usually not triangular. Instead of being straight (as in a triangle) the sides of the cross section have a curved

form (usually involute and less commonly cycloidal) to achieve a constant drive ratio. Spur gears mesh together

correctly only if fitted to parallel shafts.

2) Pressure angle of Spur Gear

Spur gear can be classified into two pressure agnles.

20° being the current industry standard and 14½° being the former equipments.

Products Spur Gear
Custom Made √
Gear Profile Type Cylindrical Gears
Manufacturing Gear Hobbing
Teeth Grinding √
Module (M) 1.5
Number of Teeth (Z) 56T
Pressure Angle (α) 20°
Helix Angle (β) 0
Accuracy Grade ISO 6-7 Grade
Heat Treatment Carburizing
Surface Hardness 58-62 HRC

STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 　 18XГT 　 SMK22 　
20Cr2Ni4 　 20X2H4A 　 　 　
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 　 40XH2MA/
40XHMA		 4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420 　

1.5 Module 56 Tooth Metal Spur Gear For Hand Wheel Gear Reducers
